The racks allow you to easily mount and remove the motorcycle top-case, the structure of the racks is rigid, they do not deform under loads, the lock has a dust-proof cover that protects the inside of the lock against mud, dust, etc., the key can be removed only in the locked position, then we can be sure that the case is always closed and that no one will be able to take it off.
Design – all racks are equipped with black blocks that can be spaced depending on the backrest arms, the blocks are always black, the trunk plate is made of chrome-plated metal sheet and they may be exchanged depending on the option.
The set also includes the blocks with rollers that are screwed to the backrest arms.
Low chrome blocks are packed as standard, when the motorcycle has a stop lamp or a license plate mounted on the upper part of the fender, the rack should be raised above those elements, high blocks are used for this purpose, the choice of high blocks should be indicated when placing the order.
Note – when placing an order, the motorcycle must have a rear passenger backrest which is connected with two screws on the side, sending a photo of the installed backrest will enable us to confirm your choice.
dimensions of the base for the case – 320 mm x 225 mm
adjustment range of the internal width of the spacing of the backrest arms – 165 – 305mm
range of adjustment to the angle of the passenger backrest – 90, 80 and 70 degrees
weight of the set – rear rack and left and right-side blocks – 1.95 kg
rack load capacity – tested 28 kg
rack load capacity – recommended 20 kg
fixing the case to the rack – at four points

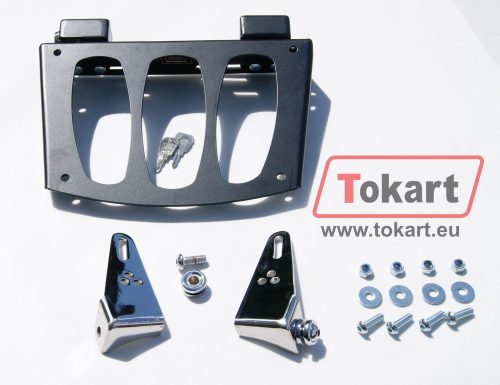

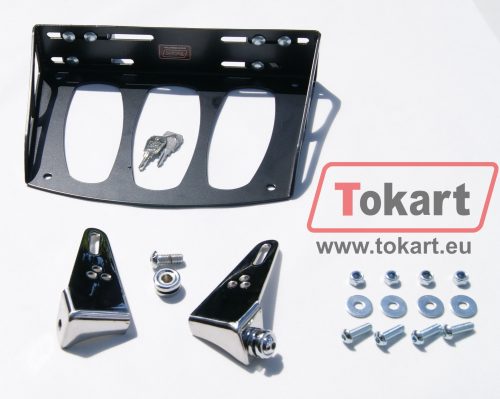

The price of the set includes:
left and right block (made of stainless steel) to be attached to the backrest
a set of galvanized screws, washers and nuts for fixing the rack with the saddlebag
set of 2 chrome rollers, 2 chrome screws and galvanized nuts to be screwed to the block
